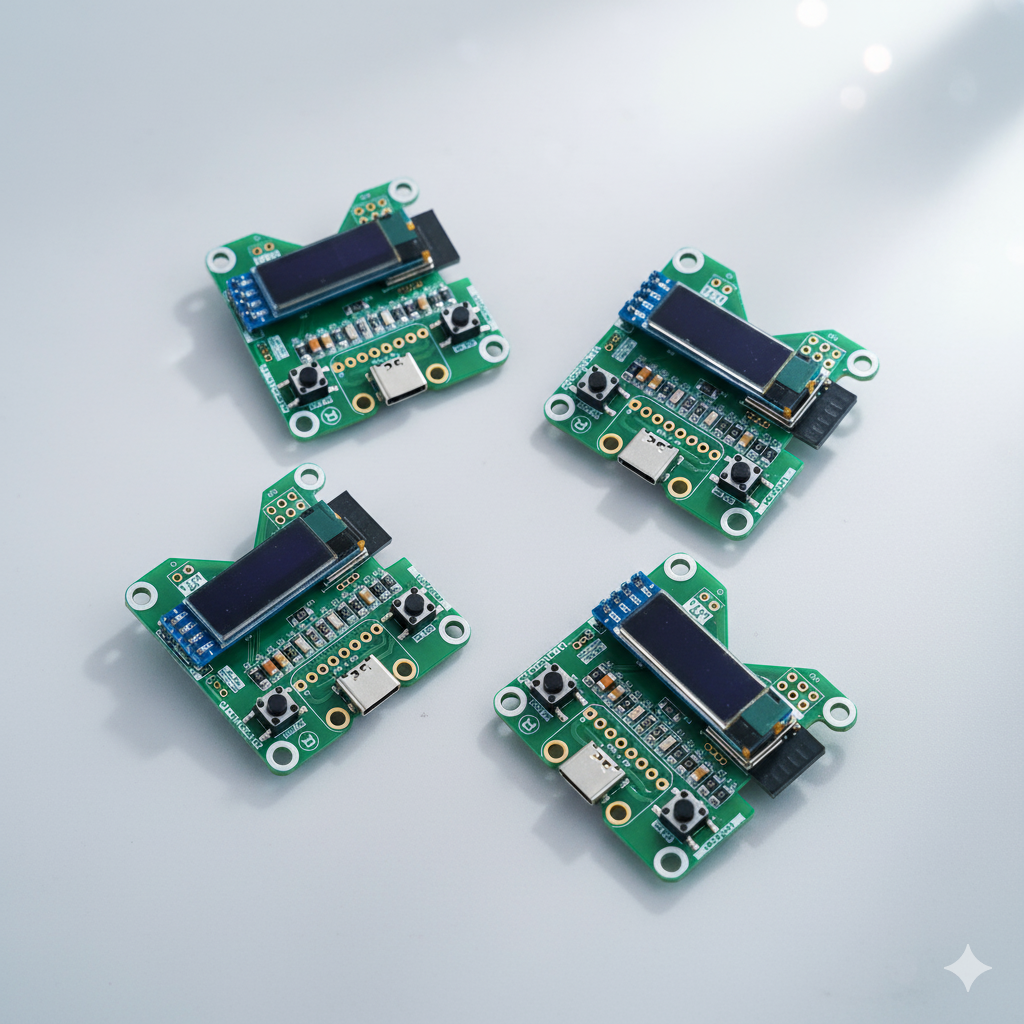

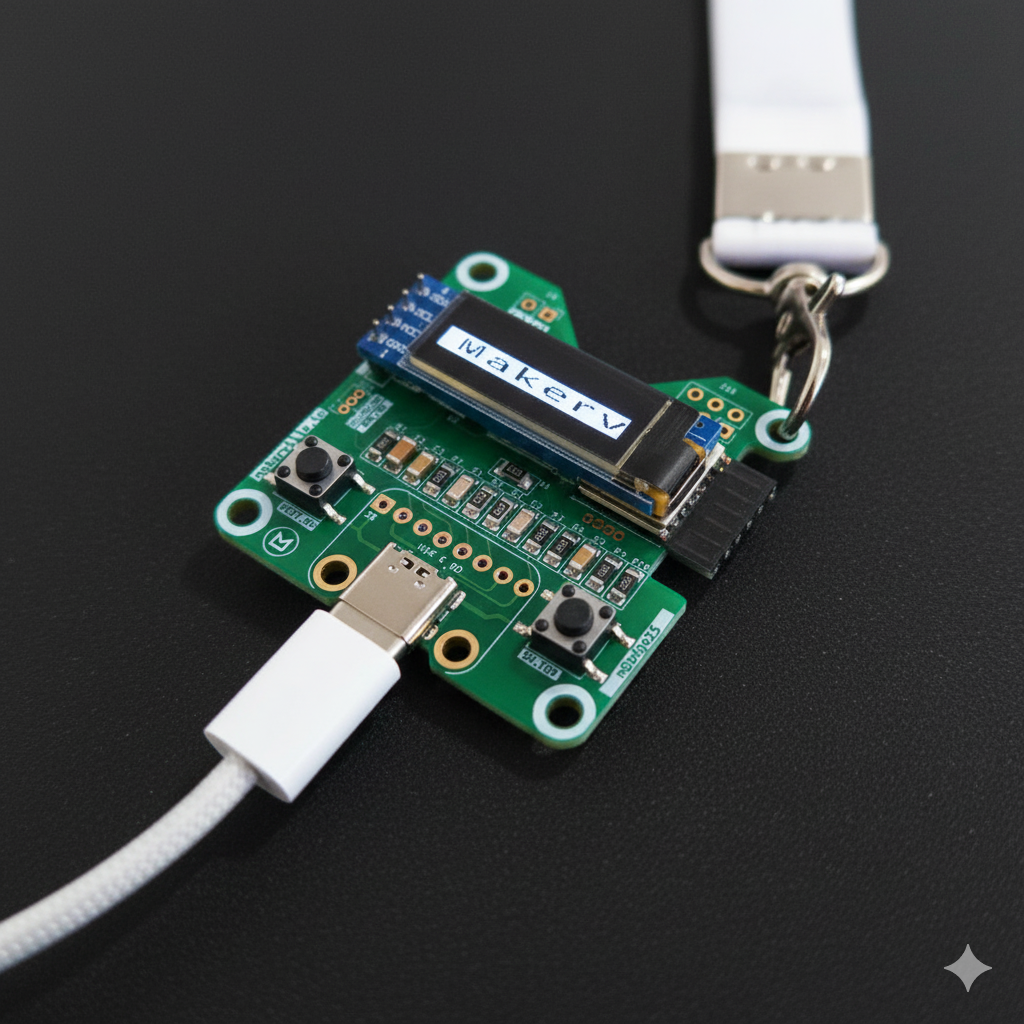

The Makerville Badge

An opensource badge made by the Makerville Community.

Makerville is a hardware community for makers, designers and engineers based out of India. Read more about Makerville here.

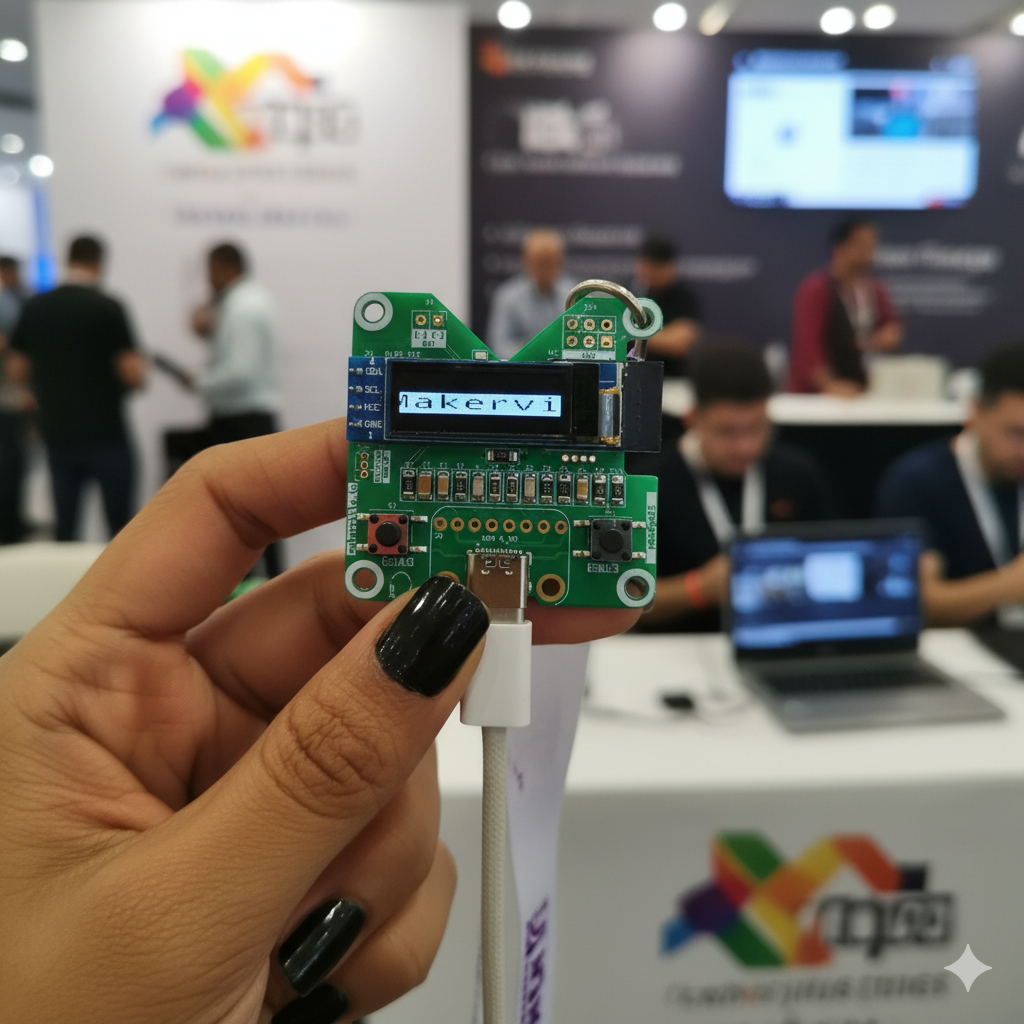

The Makerville community came together to create a simple badge that can be used by its members at conferences and hackathons, and can also be a development board for other projects.

Software features,

• Use WebBluetooth to update the text of the badge at badge.makerville.io,
• WebSerial can be used to flash the device with the latest firmware at badge.makerville.io/flash,
• Our firmware is opensource and written using the awesome Zephyr RTOS framework,

Hardware features,

• 1x ESP32-C3-MINI module which includes WiFi and BLE radios along with a 32-bit RISC-V single-core processor,

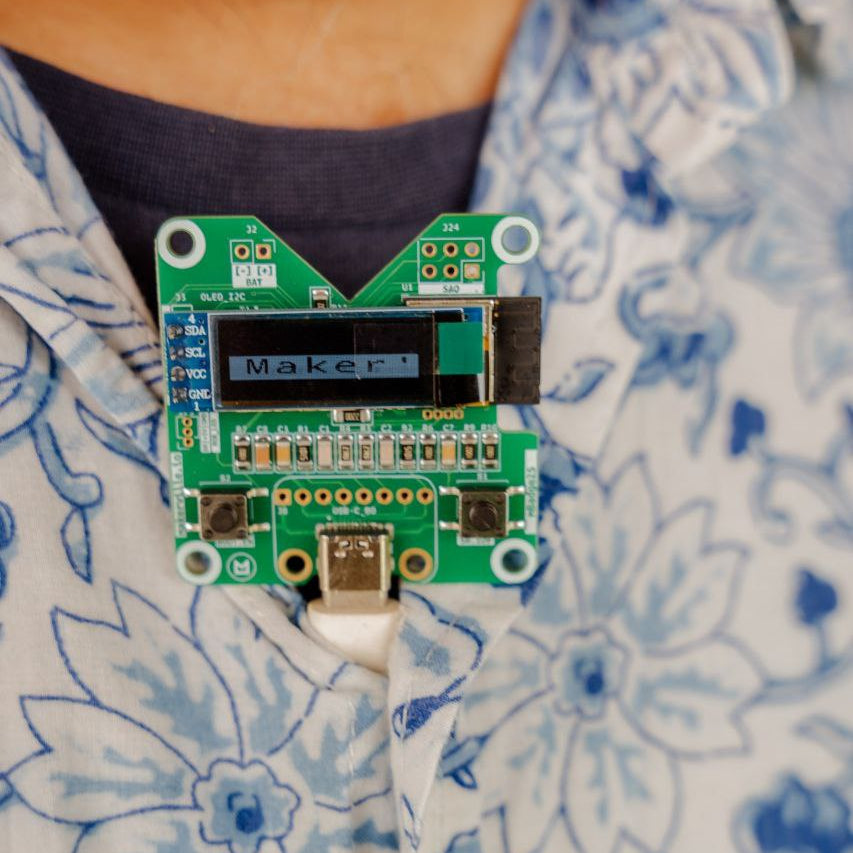

• 1x 16x128 OLED display,

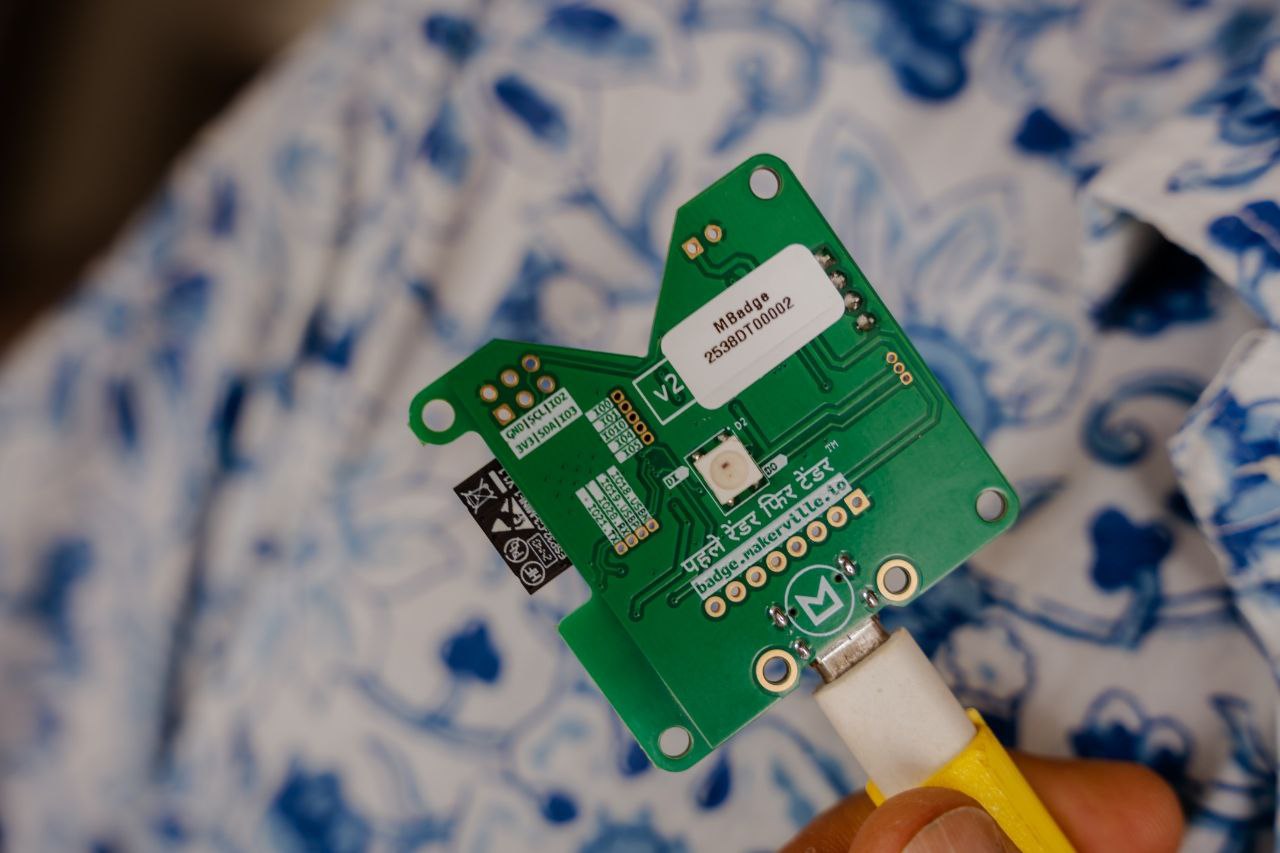

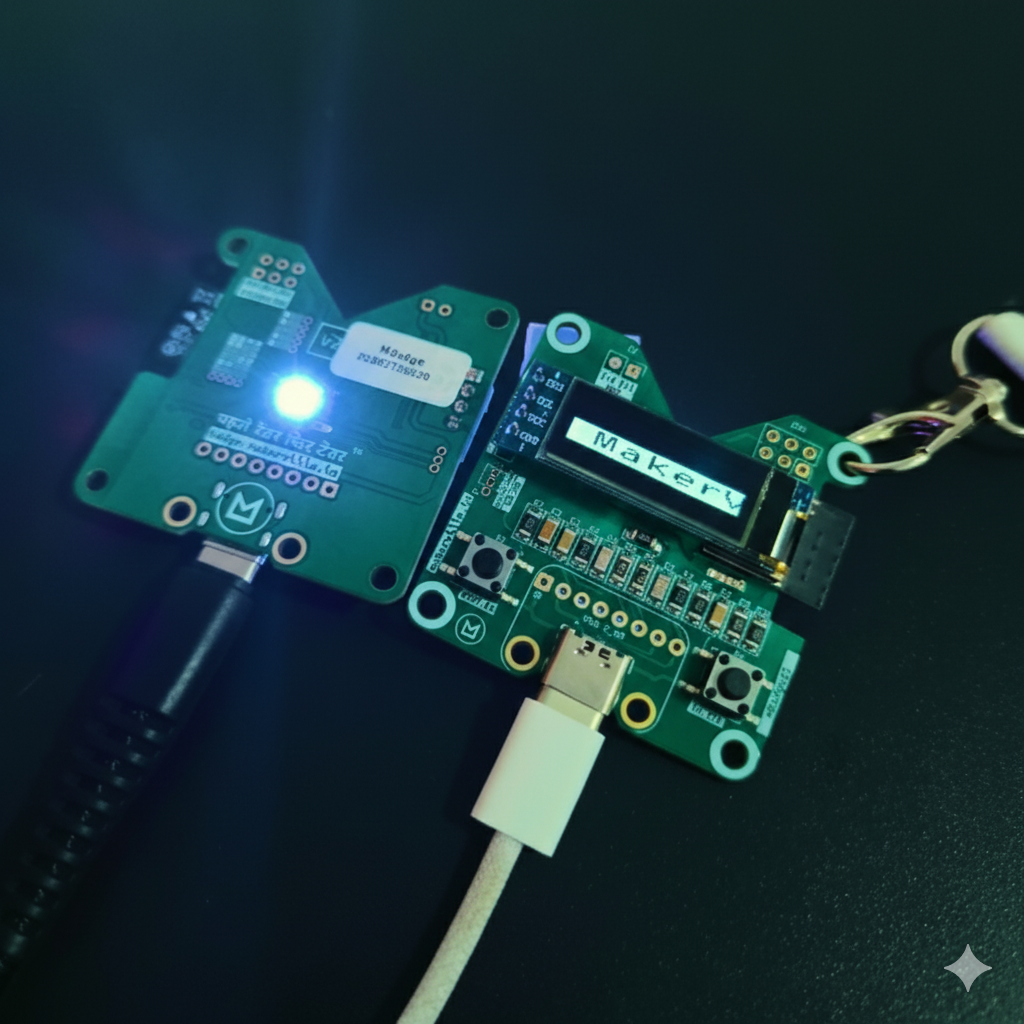

• 1x WS2812b Neopixel on the rear side,
• 1x USB-C receptacle for power and data,
• Connectors for battery, SAO and Neopixel extension
